How does a 4 stroke engine work ?

ENGINES – the powerhouses, the hearts of vehicles which makes them alive… are finally here 😍 ! This is my first article in Engines section. We’ll come across more of them as we progress further.

So we are gonna start with one of the most basic engines used in cars & bikes i.e Four stroke cycle petrol engine OR 4 stroke engine(often called). It is very easy to understand until & unless you wanna do all the thermodynamic calculations & all that stuff !

4 Stroke Engine :-

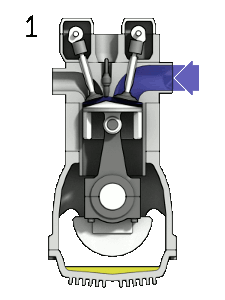

1. Intake 2.Compression 3.Power 4.Exhaust - STROKES

1. Intake 2.Compression 3.Power 4.Exhaust – STROKES source :- wikipedia.org

The name itself gives us an idea – it is an Internal Combustion Engine where the piston completes 4 strokes while turning the crankshaft twice. A stroke refers to the piston travelling full in either of the direction. A cycle gets completed when all the 4 strokes get completed. The four stroke engine was first demonstrated by Nikolaus Otto in 1876, hence it is also known as the Otto cycle.
Let us come to the parts which a 4 stroke engine has,

Piston – In an engine, piston is used to transfer the expanding force of gases to mechanical rotation of crankshaft via a connecting rod. The piston is able to do this because it is secured tightly within cylinder using piston rings to minimize the clearance between cylinder and piston !
Crankshaft – A crankshaft is a part which is able to convert the reciprocating motion to rotational motion.
Connecting rod – A connecting rod transfers motion from a piston to crankshaft which acts as a lever arm.
Counterweight – Counterweight on crankshaft is used to reduce the vibrations due to imbalances in the rotating assembly.
Flywheel – Flywheel is a rotating mechanical device which is used to store energy.
Inlet & Outlet valves – It allows to enter fresh air with fuel & to exit the spent air-fuel mixture from the cylinder.
Spark Plug – A spark plug delivers electric current to the combustion chamber which ignites the air-fuel mixture leading to abrupt expansion of gas.

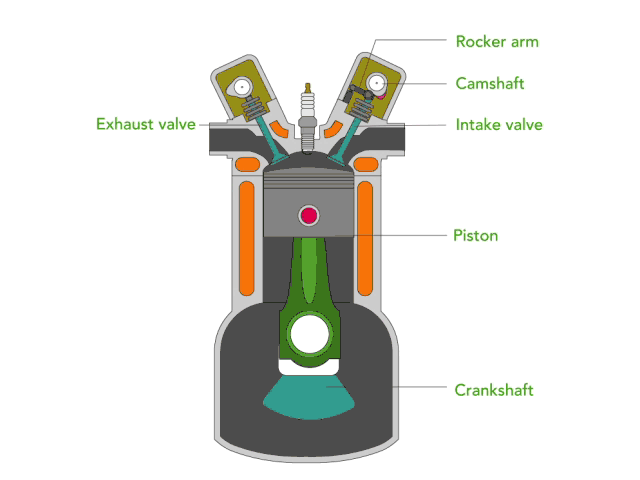

4 stroke engine parts

4 stroke engine parts. source:- xorl.wordpress.com



The four strokes of a four stroke engine go by the name (along with the working) –

Suction/Intake Stroke :-
In this stroke, the piston moves from TDC to BDC [(Top Dead Centre – the farthest position of piston to the crankshaft) to  (Bottom Dead Centre – the nearest position of piston to the crankshaft)].
The piston moves downward sucking the air-fuel mixture from the intake valve.
Key points :-
Intake valve – OPEN
Exhaust valve – CLOSED
Crankshaft rotation – 180°

Compression Stroke :-
Here, the piston moves from BDC to TDC compressing the air-fuel mixture. The momentum of flywheel helps the piston to move upwards.
Key points :-
Intake valve – CLOSED
Exhaust valve – CLOSED
Crankshaft rotation – 180° (total = 360°)

4 stroke engine

source :- cdn3.kidsdiscover.com

Power Stroke :-
The second rotation of crankshaft has begun as it completes one full rotation during compression stroke. Power stroke begins with the expansion of air-fuel mixture ignited with the help of spark plug. Here, the piston moves from TDC to BDC. This stroke produces mechanical work to rotate the crankshaft.
Key points :-
Intake valve – CLOSED
Exhaust valve – CLOSED
Crankshaft rotation – 180° (total = 540°)

Exhaust Stroke :-
Again the momentum of flywheel moves the piston up from BDC to TDC thereby driving the exhaust gases outside through the exhaust valve.
Key points :-
Intake valve – CLOSED
Exhaust valve – OPEN
Crankshaft rotation – 180°(total = 720°)

Here completes two complete rotation(720°) of the crankshaft along with one cycle ( One cycle because, a thermodynamic cycle is a series of thermodynamic processes which returns a system to its initial state. Here, series of thermodynamic processes happening are during the strokes. 4 strokes = 4 processes !)

How do inlet & outlet valves open & close at that particular times of strokes ?

Well, they are not  timed with a help of timer or clock (humour me). The answer is so amazing & solution is damn easy – Camshaft !
The camshaft is connected to crankshaft via a gear mechanism or meshed with the help of timing chain.

A cam on a camshaft converting rotational motion into oscillatory motion of valves thereby opening & closing the valves at the exact times.

A rotating cam on a camshaft !

Above animation – A cam on a camshaft converting rotational motion into oscillatory motion of valves thereby opening & closing the valves at the exact times. Source

Again, it proves that sometimes all we need is simple design.

  • Spark plug is only used in petrol engines & so used here. Diesel engines don’t have spark plug. The mixture is so highly compressed that it is able to ignite itself.

How does the engine start OR when you start the engine how does the piston come down ?
– The answer is when you insert your key into your car to turn “on”, the battery turns a small motor which is meshed with the larger gear of the flywheel. Thus the engine starts by sucking air-fuel mixture into it & then follows the above cycle.

Here is the video how engines start ?
